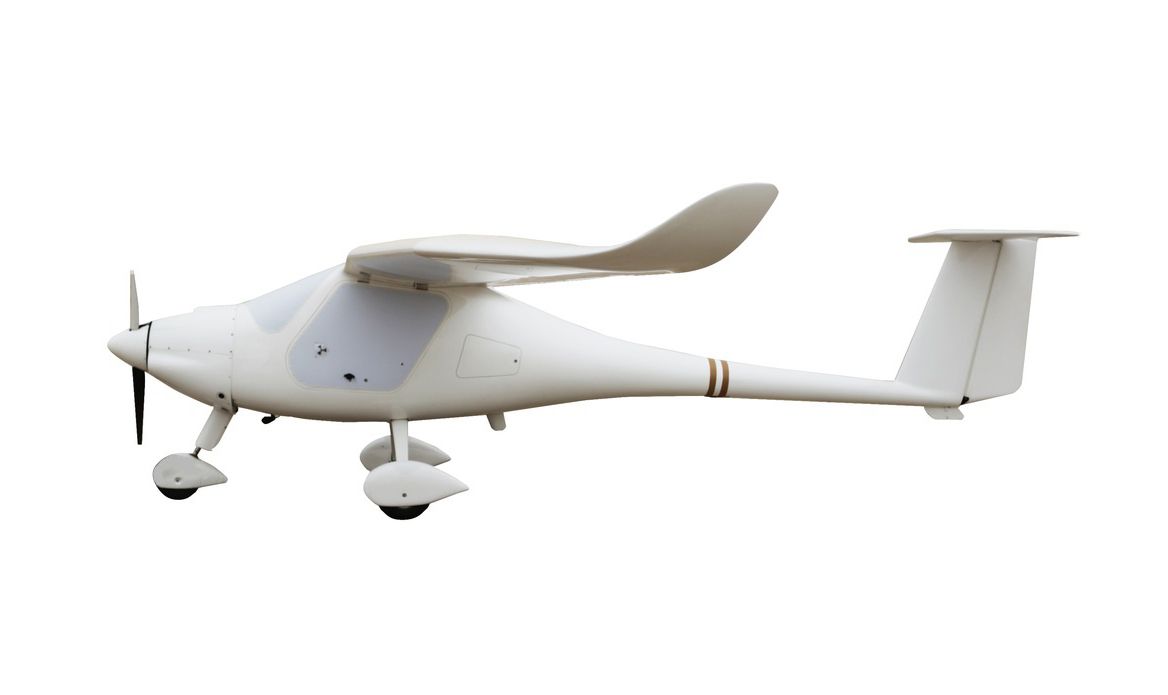

ALBATROSS 2.2
A heavy-payload, long-endurance fixed-wing system with fully automatic runway takeoff and landing and a range beyond 2,000 km.
Engineering heritage · Fixed-wing
- maximum endurance
- 20 h
- range
- 2,255 km
- maximum payload
- 250 kg
A heavy-payload, long-endurance fixed-wing system with fully automatic runway takeoff and landing. Built for day and night operations across surveillance, maritime patrol, cargo delivery, disaster support, wildlife patrol and search-and-rescue missions, with a range of more than 2,000 km.
Specifications
- Class
- MALE fixed-wing UAS
- Wingspan
- 14.97 m (49.1 ft)
- Length
- 6.5 m (21.3 ft)
- Height
- 1.82 m (6 ft)
- MTOW
- 550 kg (1,210 lb)
- Empty weight
- 300 kg (661 lb)
- Maximum payload
- 250 kg (551 lb)
- Cruising speed (75% power)
- 205 km/h (127 mph)
- Nominal endurance
- 11 h, plus 30 min reserve
- Maximum endurance
- 20 h
- Service ceiling
- 7,200 m (23,600 ft)
- Range
- 2,255 km (1,401 mi)
- Engine
- Rotax 912iS
- Fuel
- 150 L (40 gal); 13 L/h at cruise
- Generator
- 3 kW, 12 V
- Takeoff / landing
- Fully automatic, from a runway
