HiDRON
An ultra-light glider released from a high-altitude balloon and flown autonomously back to a precision landing — record flights from above 111,000 ft.
Engineering heritage · Stratospheric
- release altitude, Canadian record
- 111,434 ft
- controlled return flight
- ~4 h
- operating temperature
- −60 °C

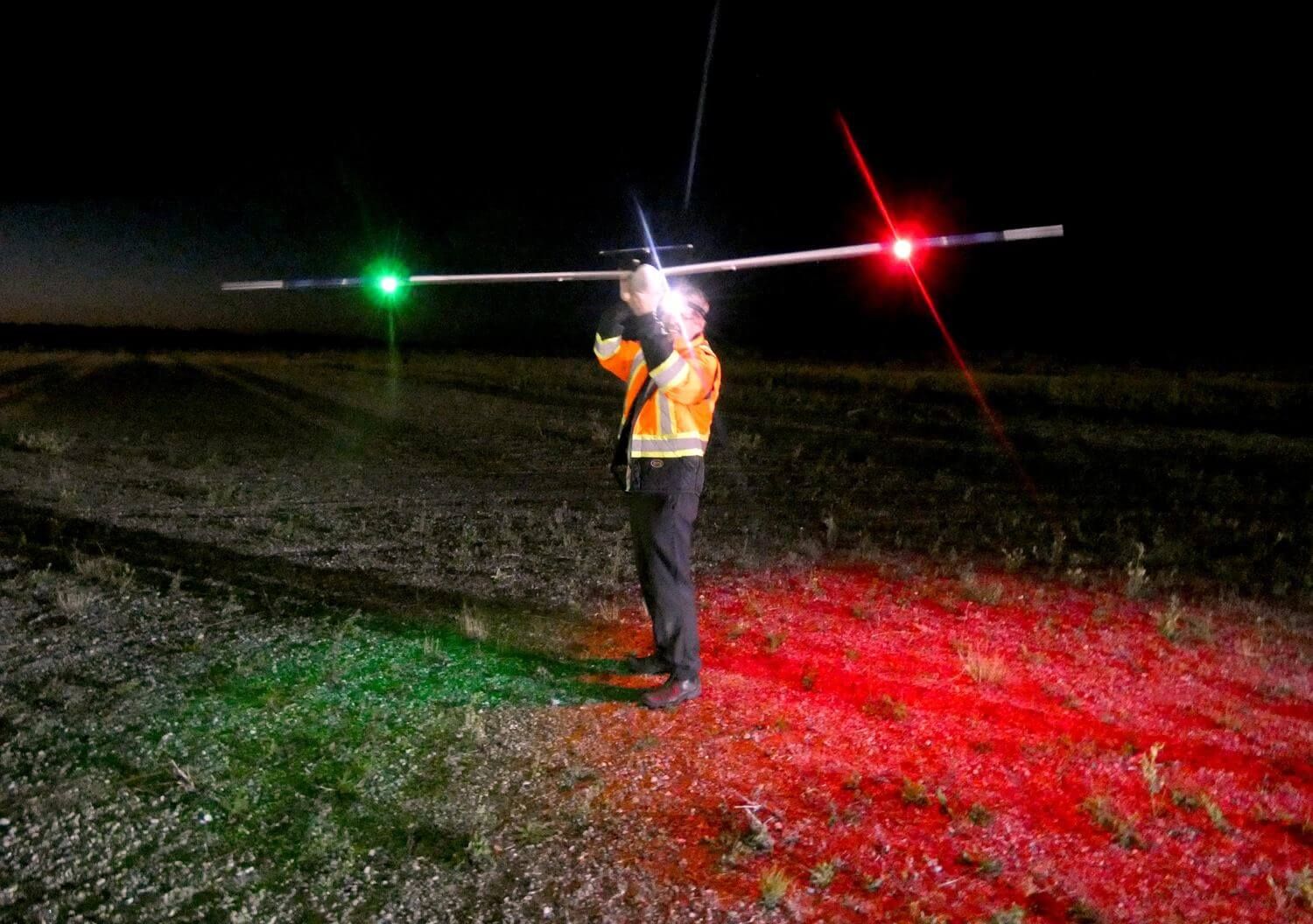

An ultra-light composite glider carried aloft by a high-altitude balloon, released in the stratosphere and flown autonomously back to a precision landing. It collects in-situ atmospheric data on the descent and demonstrates controlled beyond-visual-line-of-sight flight in the thin air, extreme cold and high winds of the upper atmosphere — a low-cost alternative to sounding rockets and expendable radiosondes.
HiDRON was developed in collaboration with Stratodynamics Aviation.
Specifications
- Class
- Balloon-launched stratospheric glider
- Wingspan
- 3.3 m (11 ft)
- Weight
- 5 kg (11 lb), composite
- Maximum payload
- 1 kg (2.2 lb) in-situ instrument
- Autopilot
- Redundant, BVLOS-capable
- Launch
- Released from a high-altitude balloon or gondola
- Record release altitude
- 111,434 ft (33.9 km)
- Controlled flight
- About 4 h
- Maximum true airspeed
- Up to 200 m/s
- Operating temperature
- Down to −60 °C (−76 °F)
- Wind tolerance
- Headwinds up to 180 km/h (112 mph)
- Recovery
- Fully autonomous return and landing
